            Fortanix: Oracle TDE Deployment

            Created by Customer Support, Modified on Mon, 23 Feb at 8:44 AM by Customer Support

            Title

            Deployment Guide – Fortanix: Oracle TDE

            Product/System

            Fortanix

            Company

            Ask4key Sdn Bhd

            Version

            1.0

            Date

            23rd February 2026

            Author

            Ariff

            Confidentiality

            Internal Use Only



            Version

            Date

            Description

            Author

            Reviewed By

            Approved by



            1.0

            23/02/26

            Initial version created

             Ariff
















            1    Introduction

            This document relates to Fortanix deployment for Oracle Transparent Data Encryption (TDE). It includes the architecture and configuration steps.





            1. 2    Architecture Diagram

            1. 2.1    Fortanix Integration with Oracle



            Figure 1: Oracle Architecture with Fortanix

            • Fortanix Data Security Manager (DSM)

            • Cloud service that enables you to securely generate, store, and use cryptographic keys.

            • PKCS#11

            • PKCS#11 is a library that provides a standard interface for cryptographic tokens such as hardware security modules (HSMs)

            • Oracle wallet

            • Encrypted file that contains application credentials (username and password) for connecting to third-party application (Fortanix)

            • Oracle PDB (pluggable database)

            • Portable collection of schemas, schema objects, and non-schema objects that appear to an Oracle Net client as a non-CDB (container database).


            1. 2.2    Fortanix: Master Encryption Key (MEK) Key Wrapping

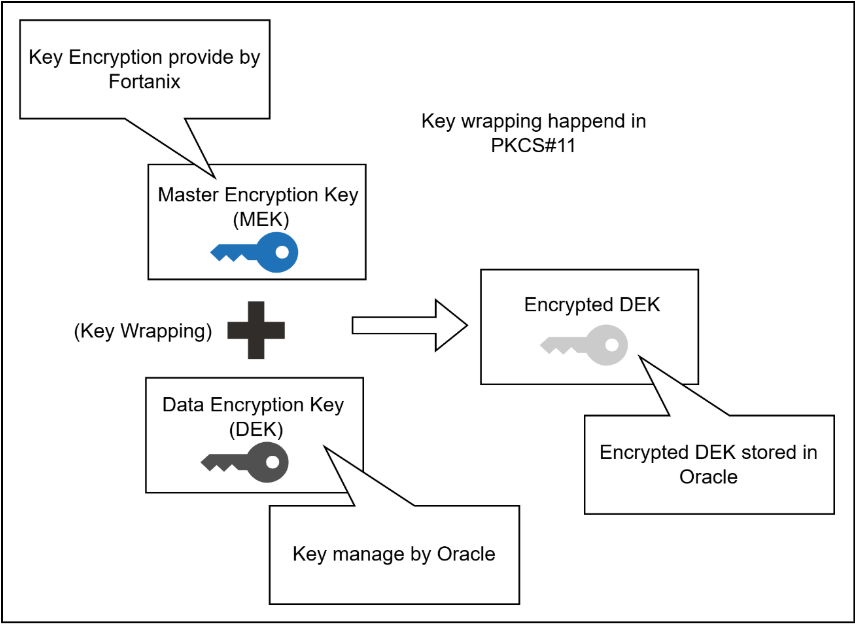

            Figure 2: Key Wrapping for DEK

            • Master Encryption Key (MEK)

            • Key encryptions provided by Fortanix DSM are used to encrypt DEK

            • Data Encryption Key (DEK)

            • Key encryptions provided by Oracle to encrypt data in Oracle


            1. 2.3    Oracle: Column Encryption



            Figure 3: Oracle - Column Encryption

            Column encryption – encrypts specific columns in a table rather than encrypting the entire tablespace.



            1. 2.4    Oracle: Tablespace Encryption

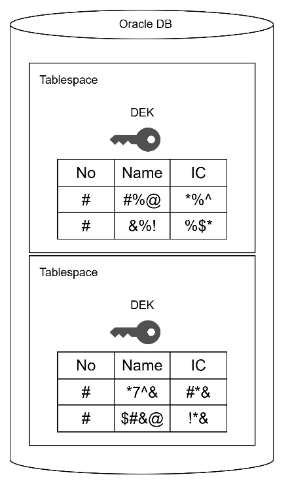

            Figure 4: Oracle - Tablespace Encryption

            Tablespace encryption - encrypts all data stored within a tablespace at rest



            3    Integration Setup

            1. 3.1    Fortanix: Application Creation

            No.

            Method

            1.  1

            Login to Fortanix DSM portal

            • - APAC region: https://apac.smartkey.io







            1.  2

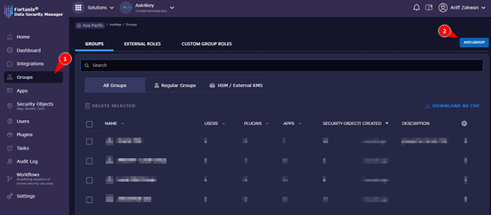

            1. Navigate to Groups tab and create a new group.

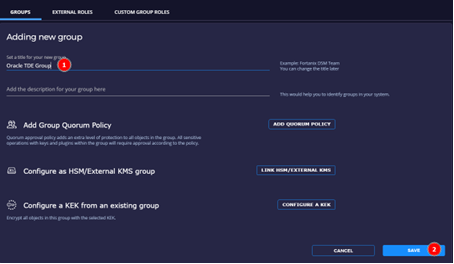

            1. Set the title for the new group and click on save.







            1.  3

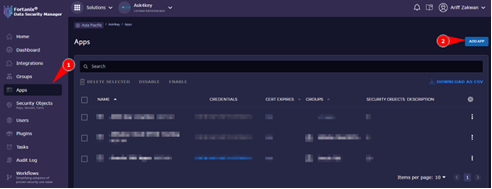

            Navigate to Apps tab and create a new application.

            1. Set the application name

            1. Authentication method = API key

            1. Assign the app to the respective group











            1.  4

            Retrieving apps UUID and credentials.

            1. Navigate to “Apps” and select the apps that you have created.

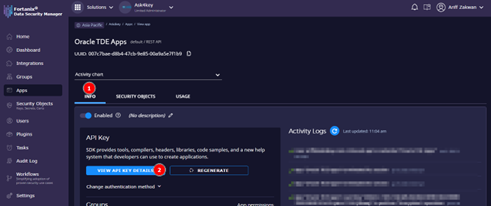

            1. In “INFO” tab, click on "VIEW API KEY DETAILS"







            1. To retrieve the Apps UUID and password, navigate to "USERNAME/PASSWORD" tab.









            1. 3.2    Oracle: PKCS#11 Agent Installation

            No.

            Method

            Installation with RPM Package

            1.  1

            Create “em-agent.repo” in “/etc/yum.repos.d” with below input.



            • nano /etc/yum.repos.d/em-agent.repo

            [em-agent]

            name=EM Agent  - $basearch

            baseurl=https://download.fortanix.com/linux/yum/el7/x86_64

            enabled=1

            gpgkey=https://download.fortanix.com/linux/yum/fortanix.pub

            gpgcheck=1





            1.  2

            Run command to get the latest package from repo.



            • sudo yum update

            1.  3

            Install the package using the command below.



            • sudo yum install fortanix-pkcs11

            1.  4

            Locate the pkcs11.so file location and navigate to the directory.



            • sudo find / -type f -name "*fortanix_pkcs11*"

            • cd /opt/fortanix/pkcs11

            1.  5

            Copy the “fortanix_pkcs11.so” to oracle location as followed. Change



            • cp fortanix_pkcs11.so /opt/oracle/extapi/64/hsm/fortanix/<version>/libpkcs11.so

            1.  6

            Change ownership and file permission for “/opt/oracle".



            • sudo chown -R oracle:oinstall /opt/oracle

            • sudo chmod -R 775 /opt/oracle

            1.  7

            Creating pkcs11.conf file directory for Fortanix application



            • sudo mkdir -p /etc/fortanix

            • sudo chown -R oracle:oinstall /etc/fortanix

            • sudo chmod -R 775 /etc/fortanix

            1.  8

            Creating pkcs11.conf file for Fortanix application



            api_endpoint = dsm portal (https://apac.smartkey.io)

            app_id = apps uuid (retrieve in apps)

            log filename = /etc/fortanix/pkcs11.log



            • nano /etc/fortanix/pkcs11.conf

            api_endpoint = “https:// <fortanix_dsm_url>”

            app_id = “95XXX8-XXXX0-4442-XXXX5-XXXX9c”

            prevent_duplicate_opaque_objects = true

            retry_timeout_millis = 60000

            [log]

            file = “<log filename>”







            1. 3.3    Wallet Creation

            No.

            Method

            1.  1

            Ensure to connect to the session with “oracle” user.



            • su - oracle

            1. 2

            Identify the “$ORACLE_BASE” and “$ORACLE_SID”.



            • echo $ORACLE_BASE

            • echo $ORACLE_SID

            1.  3

            Create wallet files with the directory below. Ensure the wallet owner is “oracle” user



            • mkdir -p <$ORACLE_BASE>/admin/<$ORACLE_SID>/wallet/tde

            1.  4

            Login to sqlplus as sysdba user



            • sqlplus / as sysdba

            1.  5

            Set the wallet directory.



            • ALTER SYSTEM SET WALLET_ROOT="/opt/oracle/admin/ORCLCDB/wallet" scope=spfile;



            For RAC database use command below:

            • ALTER SYSTEM SET WALLET_ROOT="<$ORACLE_BASE>/admin/<$ORACLE_SID>/wallet" scope=spfile sid='*';

            1.  6

            Restart the DB to update the wallet configuration.



            • shutdown immediate

            • startup

            1.  7

            Setting TDE configuration for wallet type



            • ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=HSM" scope=both;



            For RAC database use command below:

            • ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=HSM" scope=both sid='*';

            1.  8

            Ensure all pdb are in open and write mode state.



            • ALTER PLUGGABLE DATABASE ALL OPEN;

            • show pdbs;







            1. 3.4    Setting up Wallet Password

            No.

            Steps

            1.  1

            Creating keystore.



            • ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY "<DSM_APP_PASSWORD>" CONTAINER = ALL;

            1.  2

            Configuring TDE Master Key



            • ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY "<DSM_APP_PASSWORD>" CONTAINER = ALL;

            1. 3

            In encounter issue in step 2. (ORA-46665) follow steps below.

            Run the command in each PDBs.



            • alter session set container=<PDB_NAME>;

            • ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY "<DSM_APP_PASSWORD>";



            1. 3.5    Setting up Auto-Login Wallet (for version 19c and above)

            Some versions in 19c have issue with auto-login wallet

            No.

            Method

            1.  1

            Check encryption wallet status.



            • select * from V$ENCRYPTION_WALLET;

            1.  2

            If wallet status is open, ensure it is closed.

            Ensure to connect to the CDS$ROOT session.



            • ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE IDENTIFIED BY "<DSM_APP_PASSWORD>" CONTAINER = ALL;

            1. 3

            Change the keystore type to software wallet.



            • ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=FILE";

            1.  4

            Run command below to create software keystore.



            • ADMINISTER KEY MANAGEMENT CREATE KEYSTORE '<$ORACLE_BASE>/admin/<$ORACLE_SID>/wallet/tde' IDENTIFIED BY "<DSM_APP_PASSWORD>";

            1.  5

            Open the software keystore.



            • ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY "<DSM_APP_PASSWORD>" CONTAINER=ALL;

            1.  6

            Add DSM App password as secret in the software wallet



            • ADMINISTER KEY MANAGEMENT ADD SECRET '<DSM_APP_PASSWORD>' FOR CLIENT 'HSM_PASSWORD' IDENTIFIED BY "<DSM_APP_PASSWORD>" WITH BACKUP;

            1.  7

            Close the software keystore.



            • ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE IDENTIFIED BY "<DSM_APP_PASSWORD>";

            1.  8

            Creating Auto-Login keystore



            • ADMINISTER KEY MANAGEMENT CREATE AUTO_LOGIN KEYSTORE FROM KEYSTORE '<$ORACLE_BASE>/admin/<$ORACLE_SID>/wallet/tde' IDENTIFIED BY "<DSM_APP_PASSWORD>";

            1.  9

            To set wallet location to HSM backend by auto-login



            • ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=HSM|FILE";



            For RAC database use command below:

            • ALTER SYSTEM SET TDE_CONFIGURATION="KEYSTORE_CONFIGURATION=HSM|FILE" sid='*';

            1.  10

            Restart the DB to verify the auto-login.



            • shutdown immediate

            • startup

            1.  11

            Verify Auto-login wallet.



            • Select * from v$encryption_wallet;



            1.  12

            In case of RAC, transfer “ewallet.p12” and “cwallet.sso” to all nodes of RAC at ($ORACLE_BASE/admin/$ORACLE_SID/wallet/tde)





            1. 3.6    Oracle: Rotate Master Key

            1. 3.6.1    Without Using Auto-Login Wallet

            No.

            Method

            Using Container Database

            1.

            ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY "<DSM_APP_PASSWORD>" CONTAINER = ALL;

            Using non-container Database

            1.

            ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY "<DSM_APP_PASSWORD>";



            1. 3.6.2    Using Auto-Login

            No

            Method

            Using Container Database

            1.

            ADMINISTER KEY MANAGEMENT SET KEY FORCE KEYSTORE IDENTIFIED BY "<DSM_APP_PASSWORD>" CONTAINER = ALL;

            Using Non-Container Database

            1.

            ADMINISTER KEY MANAGEMENT SET KEY FORCE KEYSTORE IDENTIFIED BY "<DSM_APP_PASSWORD>";




            1. 4    Applying Encryption

            1. 4.1    Column Encryption

            No.

            Method

            1.  1

            Creating table with selective encrypted column

            (salary column only)

            • CREATE TABLE employee (first_name VARCHAR2(128), last_name VARCHAR2(128), empID NUMBER, salary NUMBER(6) ENCRYPT);

            1.  2

            Updating column in table to be encrypt

            (update empID to encrypt)

            • ALTER TABLE employee MODIFY (empID ENCRYPT USING ‘AES256’);

            1.  3

            Verify list of encrypted columns



            • select * from dba_encrypted_columns;

            1.  4

            Re-Encrypt using different encryption algorithm.



            • ALTER TABLE employee MODIFY (empID DECRYPT);

            • ALTER TABLE employee MODIFY (empID ENCRYPT USING ‘AES256’;



            1. 4.2    Tablespace Encryption

            No.

            Method

            1.  1

            Checking compatible. Only for 11.2.0.0 or higher



            • SHOW PARAMETER COMPATIBLE;

            1.  2

            If version compatible is lower run the following command



            • ALTER SYSTEM SET COMPATIBLE=’11.2.0.0’ scope=spfile;

            • shutdown immediate

            • startup

            1.  3

            Verifying DATAFILE.



            • SELECT file_name FROM dba_data_files;



            1.  4

            Create encrypted tablespace with encrypted default storage



            • CREATE TABLESPACE encrypted_ts

            • DATAFILE '<PATH_TO_DATAFILE>/encrypted_ts01.dbf' SIZE 128K

            • AUTOEXTEND ON NEXT 64K

            • ENCRYPTION USING 'AES256'

            • DEFAULT STORAGE(ENCRYPT);





            1. 5    Appendix & Reference

            1. 5.1    Glossary

            Term

            Meaning

            CDB

            Container Database

            DEK

            Data Encryption Key

            DSM

            Data Security Manager

            HSM

            Hardware Security Module

            MEK

            Master Encryption Key

            PDB

            Pluggable Database

            TDE

            Transparent Database Encryption


            1. 5.2    Tools & Resources

            • Fortanix Admin Portal: https://apac.smartkey.io/
